How to Check the Refrigerant Pressure in York YK Chiller

As a trusted supplier of York YK Chillers, I understand the significance of maintaining proper refrigerant pressure in these high - performance cooling systems. The refrigerant pressure is a crucial parameter that directly impacts the chiller's efficiency, performance, and overall lifespan. In this blog, I will guide you through the process of checking the refrigerant pressure in a York YK Chiller.

Understanding the Importance of Refrigerant Pressure

Refrigerant pressure plays a vital role in the refrigeration cycle of the York YK Chiller. It affects the heat transfer process, the compressor's operation, and the overall cooling capacity. Incorrect refrigerant pressure can lead to various issues, such as reduced cooling performance, increased energy consumption, and potential damage to the compressor and other critical components.

For example, if the refrigerant pressure is too low, the chiller may not be able to absorb enough heat from the water or air being cooled. This can result in higher leaving water or air temperatures, making the cooling system less effective. On the other hand, if the pressure is too high, it can cause excessive stress on the compressor, leading to premature wear and tear and potentially costly repairs.

Pre - check Preparations

Before you start checking the refrigerant pressure in your York YK Chiller, it is essential to take some preparatory steps. First, ensure that the chiller is in a safe operating condition. This means that all electrical connections are secure, and the system is properly grounded. You should also wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, to protect yourself from any potential hazards.

Next, gather the necessary tools. You will need a refrigerant pressure gauge set, which typically includes high - pressure and low - pressure gauges. Make sure the gauges are calibrated correctly to ensure accurate readings. Additionally, have a pen and paper handy to record the pressure readings.

Locating the Pressure Ports

The York YK Chiller has specific pressure ports for checking the refrigerant pressure. These ports are usually located on the suction and discharge lines of the compressor. The suction line is the low - pressure side of the system, while the discharge line is the high - pressure side.

To locate these ports, refer to the chiller's service manual. The manual will provide detailed diagrams and instructions on where to find the pressure ports. In general, the low - pressure port is closer to the evaporator, and the high - pressure port is near the condenser.

Connecting the Pressure Gauge Set

Once you have located the pressure ports, it's time to connect the pressure gauge set. Start by turning off the chiller and allowing it to stabilize for a few minutes. This ensures that the refrigerant pressure is at a steady state.

Connect the low - pressure gauge hose to the low - pressure port on the suction line. Make sure the connection is tight to prevent any refrigerant leaks. Then, connect the high - pressure gauge hose to the high - pressure port on the discharge line. Again, ensure a secure connection.

Taking Pressure Readings

After connecting the pressure gauge set, turn on the chiller and let it run for a few minutes to reach its normal operating conditions. Once the chiller is running smoothly, observe the pressure gauges.

The low - pressure gauge will show the suction pressure, which is typically in the range of 20 - 60 psi (pounds per square inch) for a York YK Chiller, depending on the operating conditions and the type of refrigerant used. The high - pressure gauge will display the discharge pressure, which is usually between 150 - 300 psi.

Record the pressure readings accurately. It's a good idea to take multiple readings at different intervals to ensure consistency and accuracy. Compare the readings with the manufacturer's specifications provided in the service manual. If the readings deviate significantly from the recommended values, it may indicate a problem with the refrigerant charge or the chiller's operation.

Analyzing the Pressure Readings

Once you have the pressure readings, it's time to analyze them. If the suction pressure is too low, it could mean that the refrigerant charge is low, there is a blockage in the suction line, or the evaporator is not functioning properly. A high suction pressure may indicate an overcharge of refrigerant, a faulty compressor, or a problem with the expansion valve.

Similarly, a low discharge pressure may be due to a refrigerant leak, a clogged condenser, or a malfunctioning compressor. A high discharge pressure can be caused by an overcharge of refrigerant, a dirty condenser, or restricted airflow through the condenser.

Troubleshooting and Corrective Actions

Based on the analysis of the pressure readings, you can take appropriate troubleshooting and corrective actions. If the refrigerant charge is low, you may need to add refrigerant to the system. However, it is important to note that adding refrigerant should only be done by a qualified technician, as incorrect refrigerant charging can cause further problems.

If there is a blockage in the suction or discharge lines, you may need to clean or replace the affected components. For issues with the evaporator, condenser, compressor, or expansion valve, it is recommended to contact a professional service provider who has experience working with York YK Chillers.

Additional Considerations

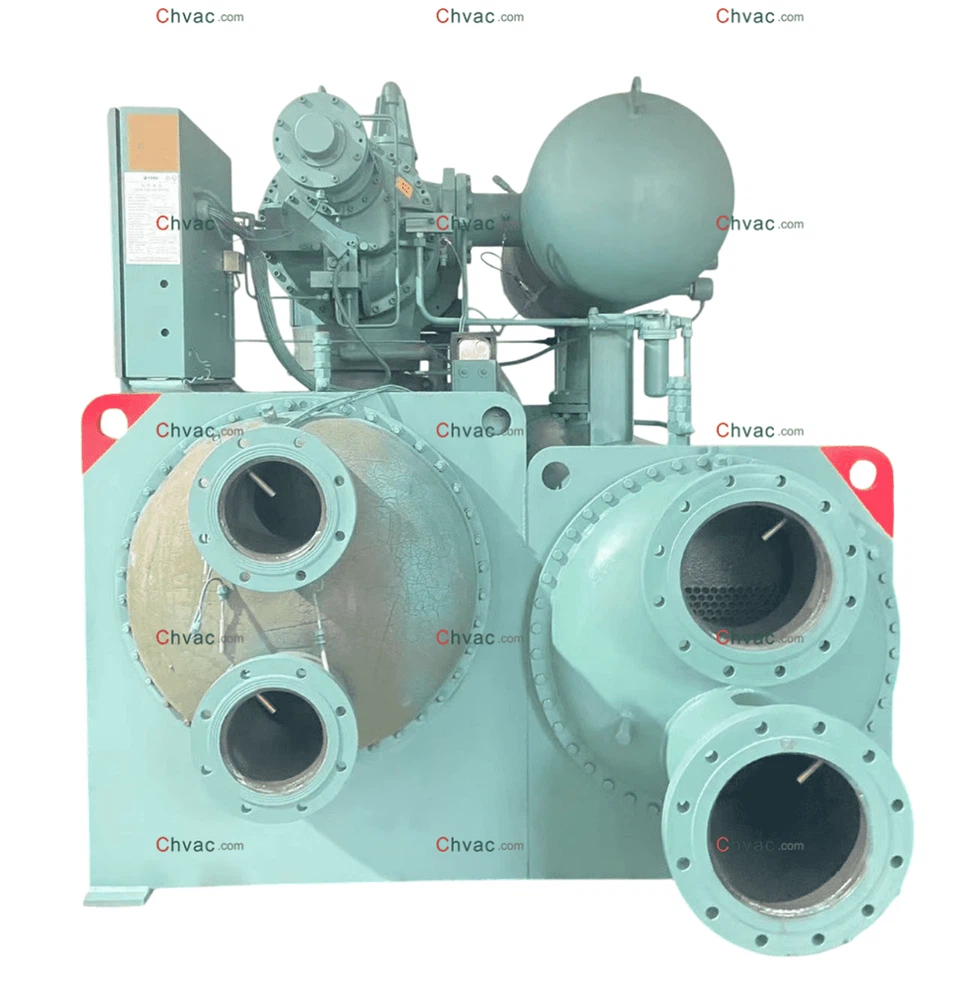

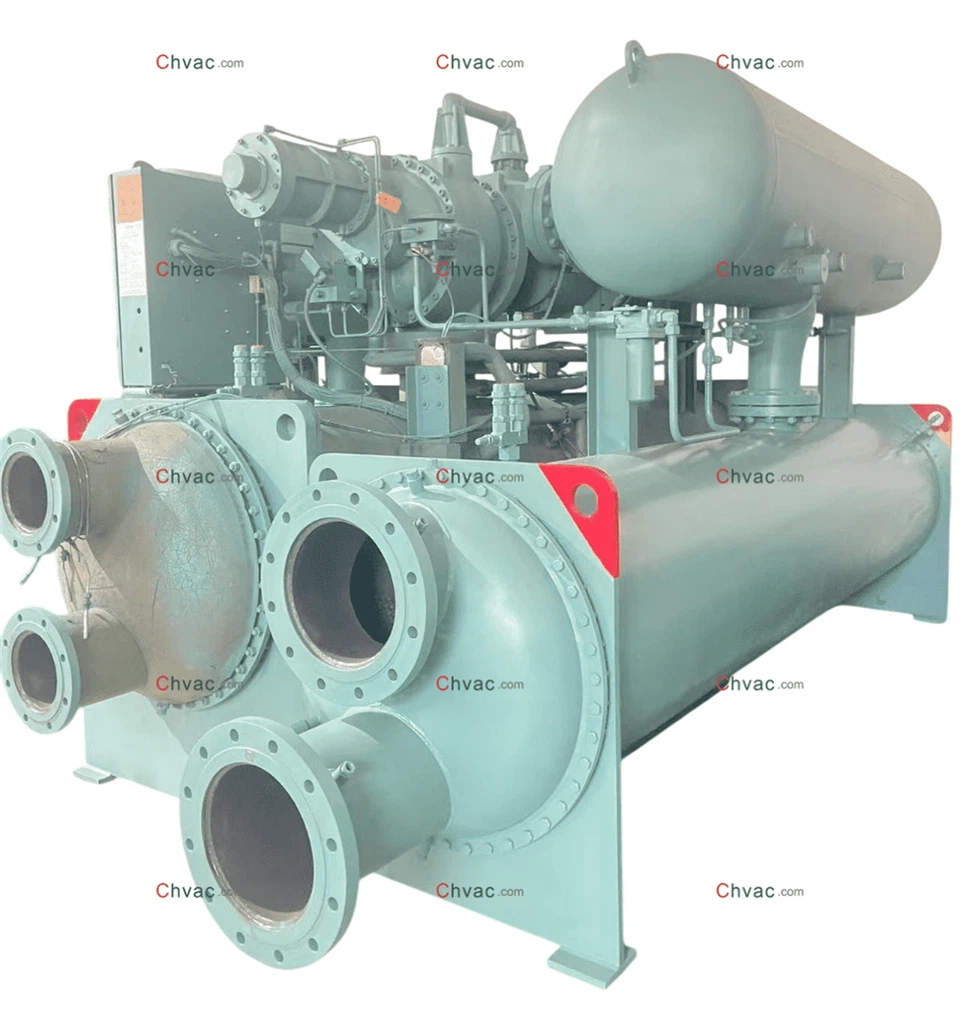

When working with York YK Chillers, it's important to be aware of the different models available. For instance, the York CentrifugalYKGCEVP85CPG/RW22 Water Cooled Chiller has its unique operating characteristics and pressure requirements. Similarly, the York YSRXFXS55CLE/22 Chiller and York Screw Chiller have their own specifications.

Always refer to the specific service manual of the chiller model you are working with for accurate information on refrigerant pressure, operating conditions, and troubleshooting.

Conclusion

Checking the refrigerant pressure in a York YK Chiller is a critical maintenance task that can help ensure the optimal performance and longevity of the cooling system. By following the steps outlined in this blog, you can accurately measure the refrigerant pressure, analyze the readings, and take appropriate corrective actions if necessary.

If you are interested in purchasing a York YK Chiller or need further technical support and advice on refrigerant pressure checking and other maintenance tasks, don't hesitate to get in touch with us. We are committed to providing you with high - quality chillers and comprehensive after - sales services.

References

• York YK Chiller Service Manual
• Refrigeration System Basics and Troubleshooting Guides
