Trane RTHDE3F2F3 Water CooledChiller
The RTHD chiller offer a highly efficient and flexible air conditioning solution designed for modern residential and commercial applications.Below is a detailed breakdown of its key features,benefits,and technical specifications
Description
BASIC INFORMATION

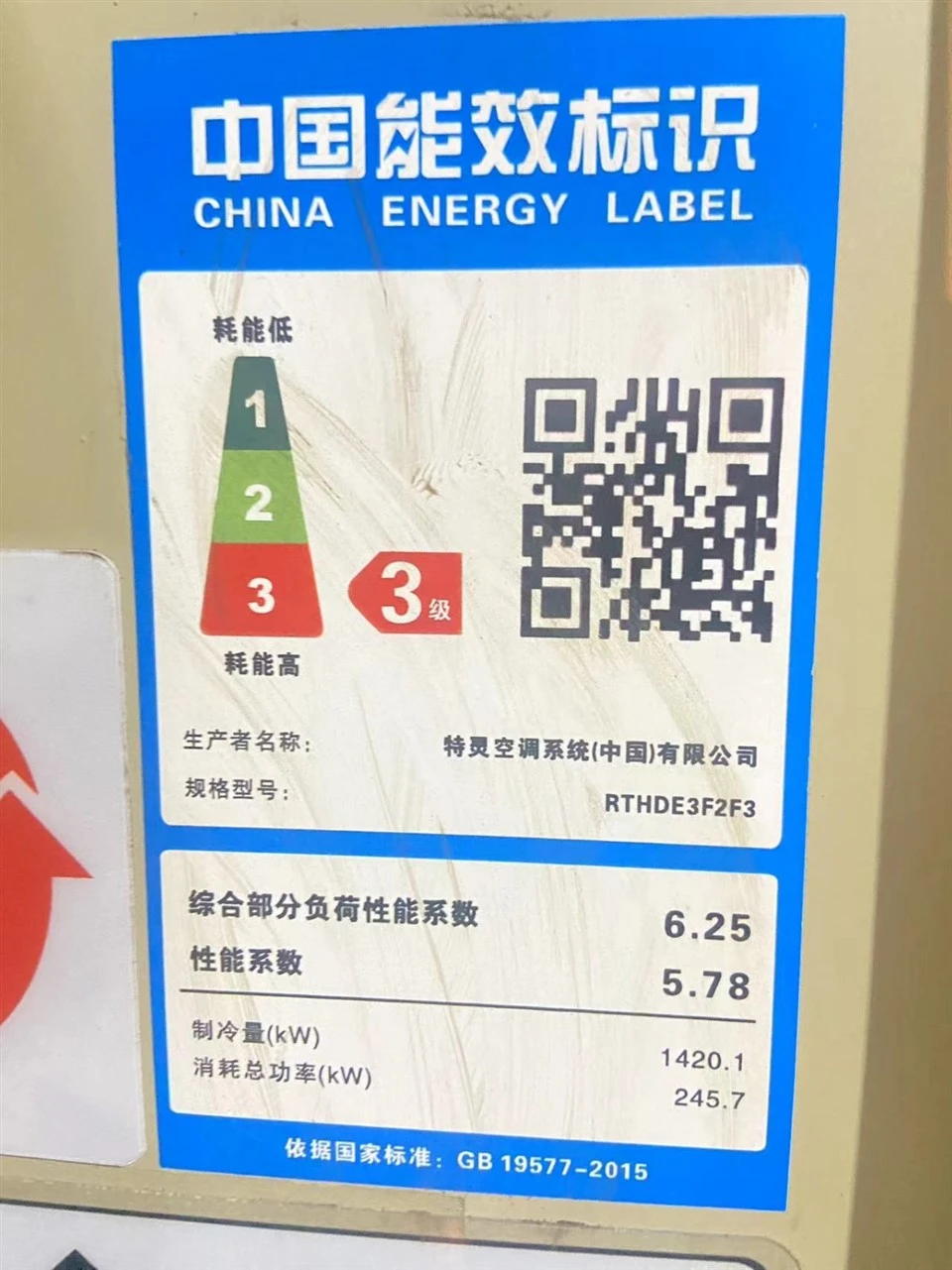

| Model | RTHDE3F2F3 |
|
| Cooling Capacity | 1420.1KW | |
| Power | 245.7KW | |
| COP | 5.78 | |
| Refrigerant | R134a | |
| Production Date: | DEC 2017 |
1.Efficient Design
The Trane RTHD chiller utilizes inverters,which significantly enhance theenergy efficiency ratio(EER)of the unit,especially at part load.This inverter technology maximizes energy savings,particularly when the unit is operating under variable load conditions.
The series is designed for high-efficiency operation,with a COP(Coefficient of Performance)at full load and a comprehensive IPLV(Integrated Part Load Value),ensuring superior performance even at lower loads.
2.Flexible Application Range
The RTHD chiller is versatile and can be applied to a wide range of environments,such as:
Residential buildings:Apartments,villas.
Commercial offices:Corporate offices,co-working spaces.
Retail stores:Supermarkets,specialty shops.
Hospitality and dining:Hotels,restaurants.
Its flexibility allows it to adapt to buildings of varying sizes and unique cooling needs.
3.Environmentally Friendly Refrigerant
The RTHD chiller uses R134a refrigerant,which is environmentally friendly and does not harm the ozone layer,meeting the standards set by the Montreal Protocol.
A falling film evaporator design reduces refrigerant charge,further enhancing the system's environmental benefits
4.Intelligent Control System
The chillers feature the UC800 controller for precise control over the unit's operation,ensuring efficient and consistent performance.
The system integrates the AdaptiView TD7 dynamic color touchscreen,which provides an intuitive graphical interface,improving the user experience.
The CH530 controller is used in older models,but the newer UC800 ensures more refined control.
5.Durability and Reliability
The RTHD series features a single compressor structure with minimal moving parts,improving mechanical reliability and reducing maintenance requirements.
The compressor rotor is directly connected to the motor,reducing the number of parts and enhancing stability.
Refrigerant suction cooling ensures the motor operates at lower temperatures,contributing to more stable and reliable performance.
