McQuay 120RT Water Cooled Screw Chiller CUW120DS5Y （Used）in Stock
video
McQuay 120RT Water Cooled Screw Chiller CUW120DS5Y （Used）in Stock

McQuay 120RT Water Cooled Screw Chiller CUW120DS5Y （Used）in Stock

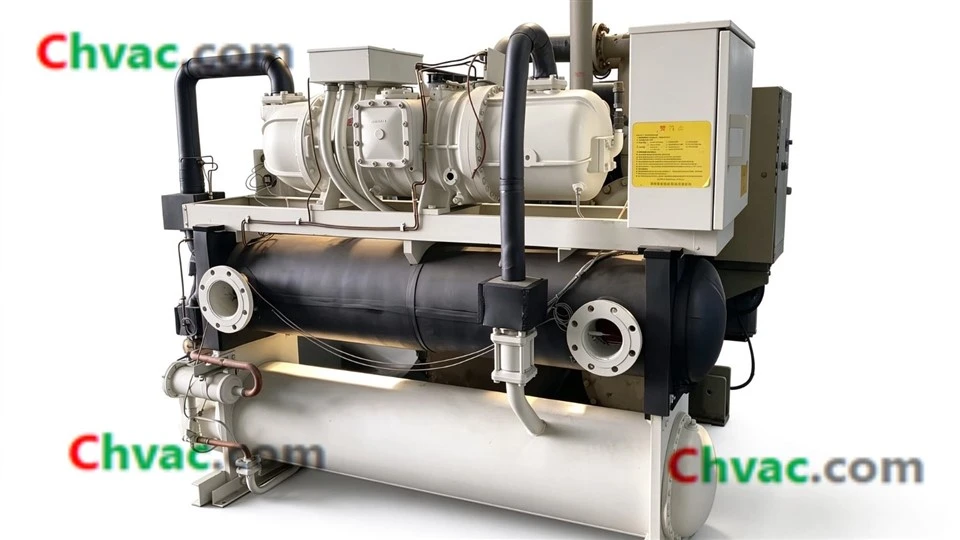

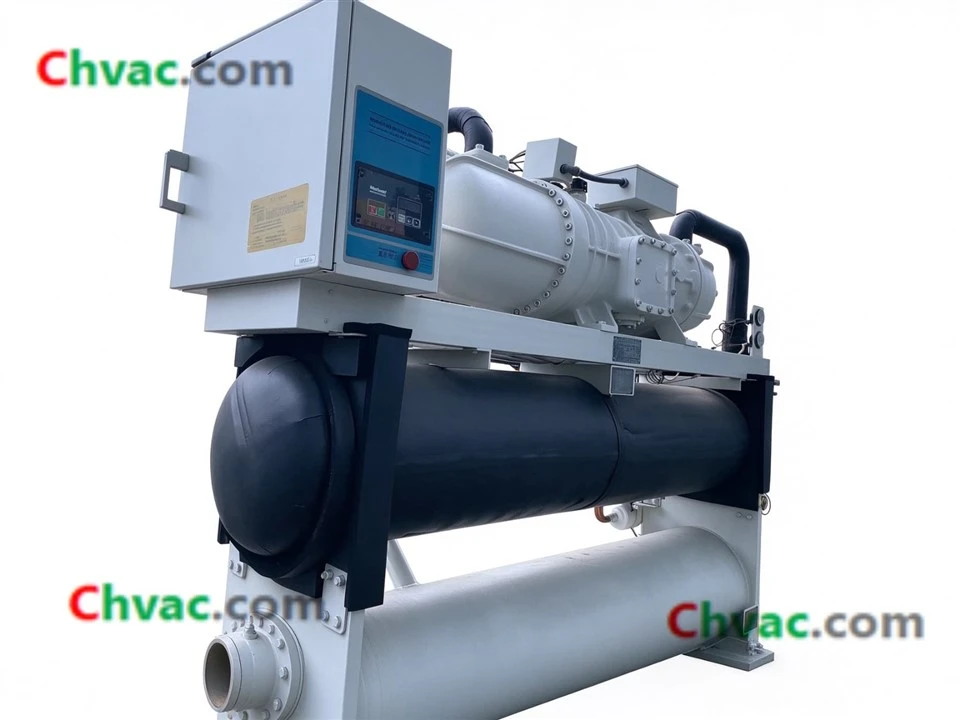

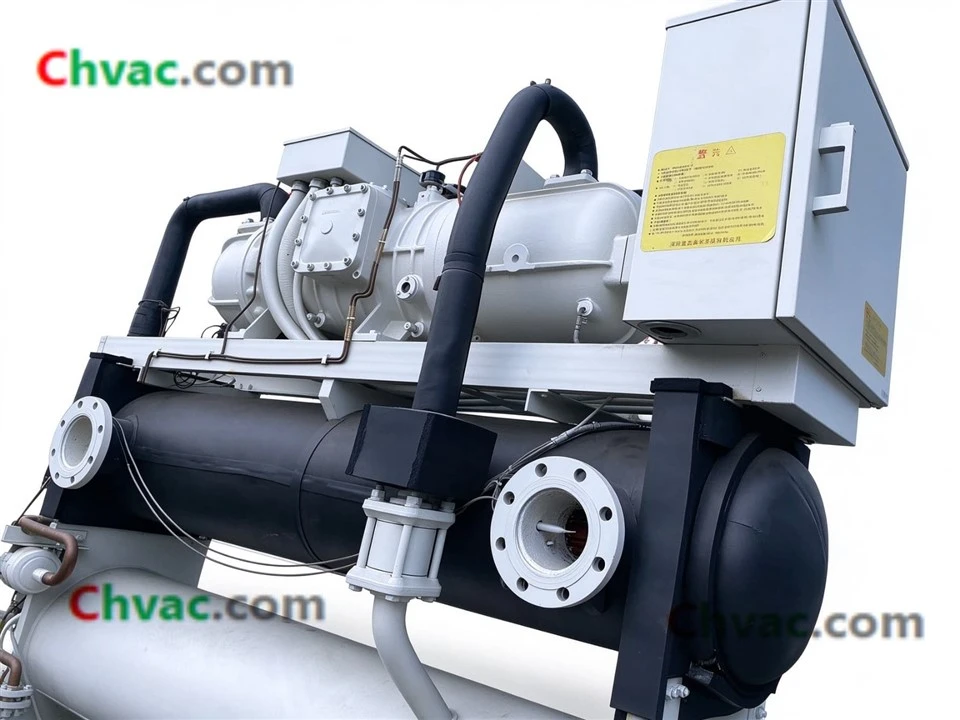

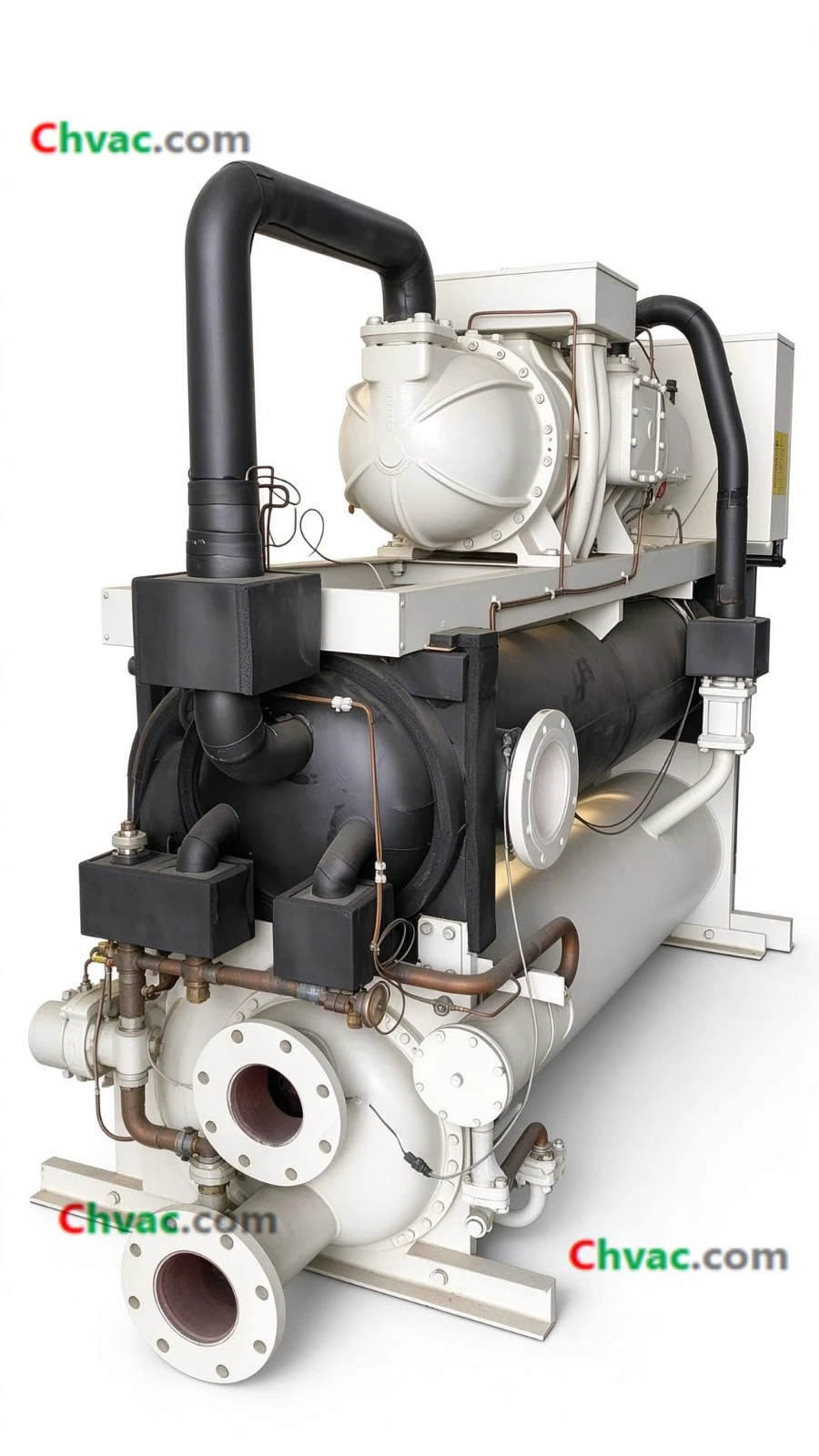

McQuay CUW120DS5Y Water Cooled Screw Chiller, 120RT / 415kW, 380V 50Hz, R22 refrigerant. Manufactured in 2010, Shell & tube evaporator, original Daikin-McQuay unit, good working condition, second-hand industrial water chiller for commercial & factory cooling projects.

Send Inquiry

Description

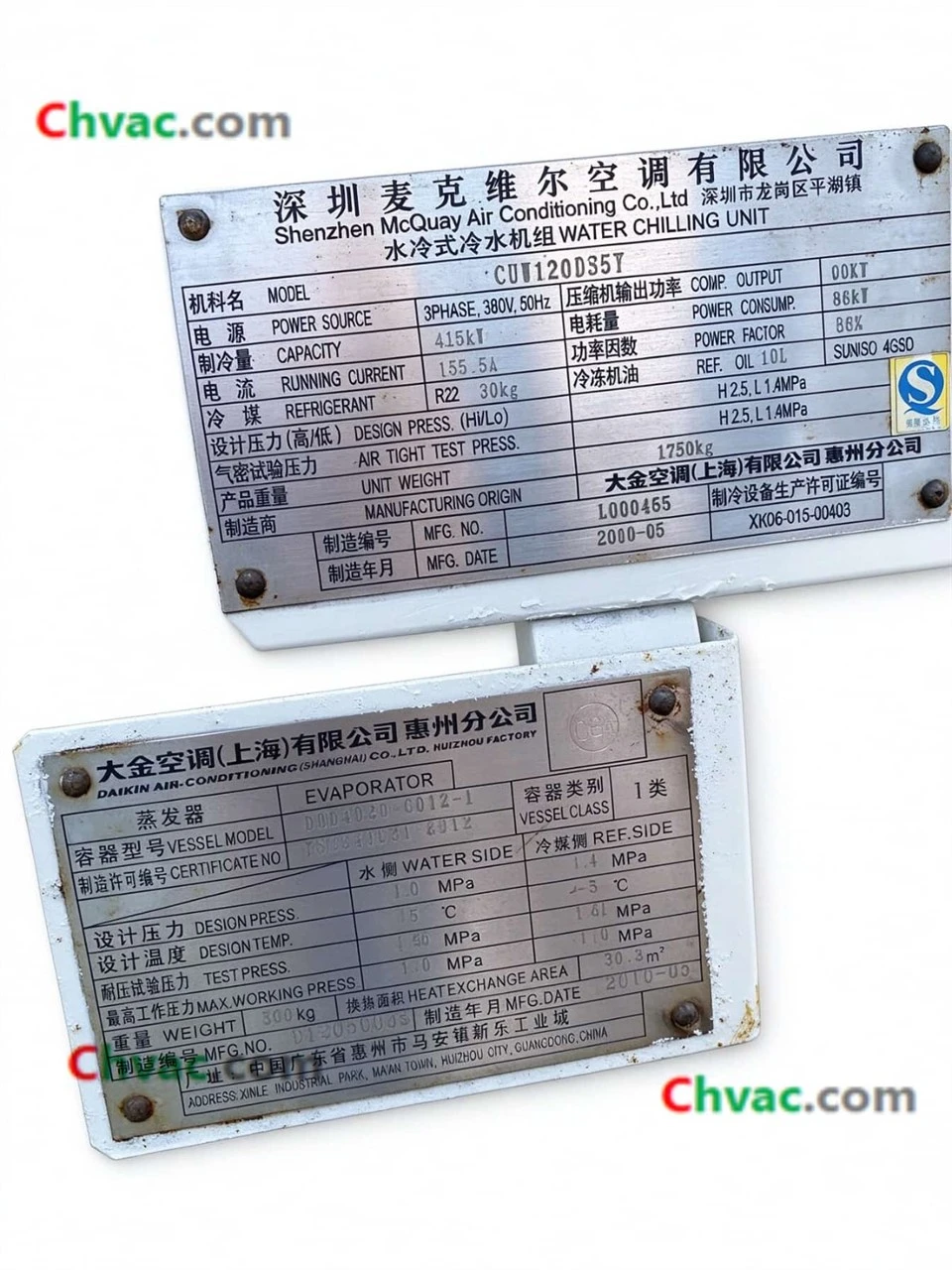

Item Specification
Brand McQuay
Model CUW120DS5Y
Unit Type Water Cooled Screw Chiller
Nominal Cooling Capacity 415 kW (120 RT)
Manufacturing Date May 2010
Unit Net Weight 1750 kg
Power Supply 380V / 3Ph / 50Hz
Compressor Rated Power 90 kW
Unit Input Power 88 kW
Rated Operating Current 155.5 A
Power Factor 0.86
Refrigerant R22, Charge: 60 kg
Lubricating Oil SUNISO 4GSD, Oil Volume: 10 L
High Side Design Pressure 2.5 MPa
Low Side Design Pressure 1.4 MPa
Evaporator Model DHD4020-C012-1
Evaporator Heat Exchange Area 30.2 m²
Evaporator Water Side Design Pressure 1.0 MPa
Evaporator Refrigerant Side Design Pressure 1.4 MPa
Condenser Water Side Design Pressure 1.0 MPa
Condenser Refrigerant Side Design Pressure 2.5 MPa
