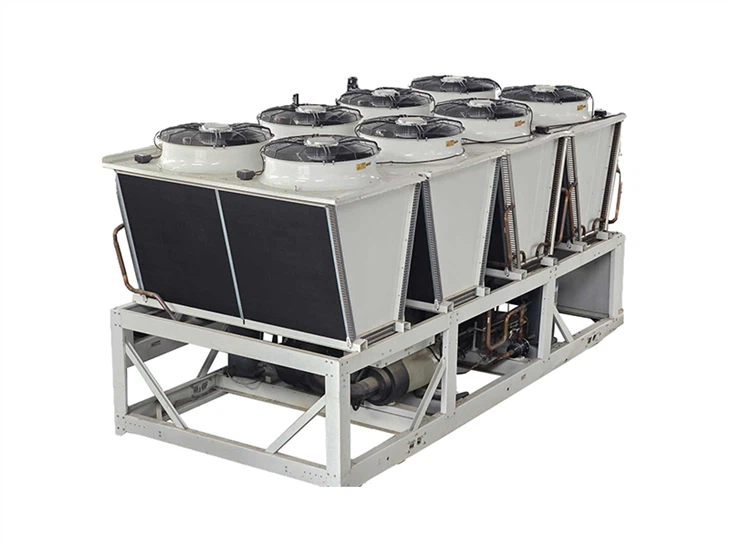

Trane RTAG Chiller
Trane RTAG Chiller
Trane RTAG Chiller
Trane RTAG Chiller

Trane RTAG Chiller

Name: China Trane RTAG Chiller Suppliers Factory - Buy Discount Trane RTAG Chiller for Sale - Chvac Machinery
Brand: Chvac
SKU: 258762417

The trane rtag Chillers is a high-performance,energy-efficient refrigeration solution designed for commercial and industrial applications.Known for its reliability and environmentally friendly features,the RTAG series is ideal for cooling large and medium-sized buildings and facilities,offering an excellent balance of energy efficiency,environmental sustainability,and operational reliability.

Send Inquiry

Download

Description

Features

In Stock Ready To Ship

1.High Energy Efficiency Ratio:

-The RTAG series features high-efficiency double-threaded compressors that ensure an excellent energy efficiency ratio under various load conditions.This significantly reduces operating costs,delivering a COP(Coefficient of Performance)of up to 3.2.

-With this high efficiency,users can expect reduced energy consumption and lower utility bills,making the RTAG series a cost-effective solution for large cooling demands.

2.Environmentally Friendly Refrigerant:

-The RTAG series Trane Screw Chiller uses the R134a refrigerant,a more environmentally friendly option compared to traditional refrigerants.This helps reduce the unit's environmental impact,supporting global sustainability efforts while still effectively meeting the cooling requirements of commercial and industrial facilities.

3.Intelligent Control System:

-The RTAG chillers are equipped with the UC800 touch screen controller,offering advanced adaptive control features.These include:

-Chilled water temperature reset for better precision.

-Unit soft loading to optimize system efficiency.

-Basic load control and precise load control for enhanced performance.

-Remote control capabilities,providing flexibility and ease of use.

-This intelligent control system allows for fine-tuned,responsive operation,ensuring that the unit performs optimally under changing conditions.

4.Low Noise Technology:

-The RTAG series offers four noise options to accommodate various noise requirements:

-Standard

-Semi-Low Noise

-Low Noise

-Low Noise and Night Mode

-This range of noise options makes the RTAG series ideal for applications where noise levels must be controlled,such as in office buildings,hospitals,and residential areas.

5.Advanced Control System with AdaptiView TD7:

-The unit includes the AdaptiView TD7 dynamic color display touch screen and Symbio800 controllers,providing an intuitive graphical interface for easier operation and system monitoring.

-The AdaptiView TD7 enables simplified control and visualization,allowing operators to quickly assess system performance and make adjustments as necessary.

-Adaptive control logic optimizes the system's operation,ensuring efficient and reliable performance across a wide range of conditions.

Model	Trane RTAG
Cooling Capacity	Specific parameters are available in the technical datasheet.
Weight and Size	Specific dimensions and weight details can be found in the datasheet.
Power Supply	380V/50Hz
Refrigerant Type	R-134A
Screen	AdaptiView TD7 and Symbio800 controllers
COP	Around 3.2

Application

The RTHG water-cooled Trane Screw Chillers are ideal for:

Commercial Buildings

Shopping malls,office buildings

Industrial Facilities

Manufacturing plants,chemical plants,cold storage

Medical Institutions

Hospitals,laboratories

Data Centers

Server rooms,cloud computing centers

parameter

High-efficiency nominal refrigeration performance parameter table
Model		RTAG-H	100	125	145	155	170	190	205	225	255	285	310	340	375	400	440
Refrigerant		KW	341	429	496	534	578	635	685	774	878	993	1098	1155	1289	1384	1540
Refrigerant		Ton	97	122	141	152	164	181	195	220	250	282	312	328	367	393	438
Capacity		KW	100	123	145	158	172	184	205	230	258	290	319	346	377	423	474
Refrigerant		R134a
Power Supply		380V150Hz/3Ph
Compressor	Type	Horizontal semlenclosed screw compressor
	Shrter	Wye-Delta Closed Transition Starter
	Circuits		1	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	Min load		30%	15%	15%	15%	15%	15%	15%	15%	10%	7.50%	7.50%	7.50%	7.50%	7.50%	7.50%
Evaporator	Type	Shell & Tube (CHIL)
	Rating flow	I/S	16.3	20.4	23.6	25.4	27.5	30.3	32.6	36.9	41.8	47.3	52.3	55	61.4	65.9	73.4
	Rating WPD	kPa	42.5	38.7	51.5	50.7	39.2	47.1	42.6	44.4	49.1	50	48.7	53.7	52.1	49.4	40.4
	tube size	mm	DN100	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN200	DN200	DN200
Condenser	Fan type		Axial flow
	Quantity	per	6	8	8	8	8	10	10	12	14	14	16	16	18	18	20
	power	KW/per	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	1.8
	Fan speed	RPM	950	950	950	950	950	950	950	950	950	970	970	970	970	970	970
	Single fan airflow	m²/h	17,982	17,982	17,982	17,982	17,982	17,982	17,982	17982	17982	20000	20000	20000	20000	20000	20000
Max RLA		A	269	319	369	405	441	489	528
Start-up Current		A	406	371	413	513	543	576	609
Refrigerant charge	ckt 1	kg	94	80	76	76	76	81	82	98	140	140	158	174	148	148	183
Refrigerant charge	ckt 2	kg	NA	62	76	76	76	81	82	98	69	69	75	75	148	148	183
Dimension	Length	mm	3,840	5020	5020	5020	5020	6200	6200	7380	8995	8995	10130	10130	11310	11310	11810
	Width	mm	2245	2245	2501	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Height	mm	2501	2373	4130	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480
Shipping weight		kg	2805	5614	4364	4174	4341	4699	4798	5354	7121	7341	8028	8044	9212	9362	10197
Operation weight		kg	2960	4046	4364	4421	4602	4971	5085	5473	7227	7461	8165	8181	9363	9529	10403
Notes: 1. Cooling conditions: inlet and outlet water temperature 12 ℃ C/7 ℃, ambient temperature 35 ℃; fouling coefficient 0.018m. ℃/kW, 85-225ton machine evaporator is 2 processes, 255ton and above machine evaporator is 1 process; 2. Ultra-low noise, wide ring temperature or low ring temperature options, EC motor is used on the air side; 3. Power supply type is selected according to the unit voltage (380V/50Hz/3Ph, 400V/50Hz/3Ph, 415V/50Hz/3Ph three options), and the current value given in the table is based on 380V/50Hz/3Ph; 4. Trane's products are constantly being improved and updated. If there are any changes to the data in the above table, we will not notify you separately. Please forgive us.

Model		RTAG-X	85	100	125	145	155	170	190	205	225	255	285	310	340	375	400	410	440
Capacity		KW	294.1	354	444	514	554	600	652	709	791	897	1029	1115	1182	1314	1411	1455	1576
Capacity		Ton	83.6	101	126	146	157	171	171	202	225	255	293	317	336	374	401	414	448
Capacity		KW	80.5	98	118	138	150	162	162	196	221	249	277	307	325	368	411	399	449
Refrigerant		R134a
Power Supply		380V150Hz/3Ph
Compressor	Type	Horizontal semlenclosed screw compressor
	Starter	Wye-Delta Closed Transition Starter
	Circuits		1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	Min load		30%	30%	15%	15%	15%	15%	15%	15%	15%	10.00%	10.00%	10.00%	10.00%	8.00%	8.00%	8.00%	8.00%
Evaporator	Type	Shell & Tube (CHIL)
	Rating flow	I/S	14	16.9	21.2	24.5	26.4	28.6	31.1	33.8	37.7	42.7	49	53.1	56.3	62.6	67.2	69.3	75.1
	Rating WPD	kPa	36.6	43.3	29.8	44.7	46	40.1	47.2	36.3	39.2	51.2	53.5	50.1	56.1	44.7	43.8	46.4	42.3
	tube size	mm	DN100	DN100	DN125	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN200	DN200	DN200	DN200
Condenser	Fan type		Axial flow
	Quantity	per	6	6	10	10	10	10	12	12	14	16	18	18	20	20	20	24	24
	power	KW/per	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	Fan speed	RPM	950	950	950	950	950	950	950	950	950	950	970	970	970	970	970	970	970
	Single fan airflow	m²/h	17,982	17,982	17,982	17,982	17,982	17,982	17,982	17982	17982	17982	20000	20000	20000	20000	20000	20000	20000
Max RLA 1	Control panel 1	A	230	269	327	377	413	449	496	536	543	453	507	547	556	498	537	547	547
	Control panel 2										-	226	275	275	275	498	537	547	547
Start-up Current	Control panel 1	A	373	406	371	413	513	543	576	609	759	637	720	753	759	717	747	753	753
	Control panel 2										-	441	530	530	530	717	747	753	753
Refrigerant charge	ckt 1	kg	94	100	89	85	85	85	90	91	104	156	165	166	198	167	167	174	202
Refrigerant charge	ckt 2	kg	NA	NA	71	85	85	85	90	91	104	69	77	83	82	167	167	174	202
Dimension	Length	mm	3,840	3840	6200	6200	6200	6200	7380	7380	8602	10130	11310	11310	11810	11810	11810	14850	14850
	Width	mm	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Height	mm	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480	2480
Shipping weight		kg	2740	2910	4266	4609	4647	4814	5041	5150	5931	7695	8278	8364	8673	9982	10111	10799	11314
Operation weight		kg	2888	3069	4515	4868	4912	5093	5331	5466	6062	7801	8398	8501	8810	10149	10294	10982	11520
Notes: 1. Cooling conditions: inlet and outlet water temperature 12 ℃ C/7 ℃, ambient temperature 35 ℃; fouling coefficient 0.018m. ℃/kW, 85-225ton machine evaporator is 2 processes, 255ton and above machine evaporator is 1 process; 2. Ultra-low noise, wide ring temperature or low ring temperature options, EC motor is used on the air side; 3. Power supply type is selected according to the unit voltage (380V/50Hz/3Ph, 400V/50Hz/3Ph, 415V/50Hz/3Ph three options), and the current value given in the table is based on 380V/50Hz/3Ph; 4. Trane's products are constantly being improved and updated. If there are any changes to the data in the above table, we will not notify you separately. Please forgive us.

Model		RTAG-P	85	100	125	145	155	170	190	205	225	230	255	285	310	340	375	400	410	440	460
Capacity		KW	289	345	444	514	548	587	640	694	759	791	863	984	1089	1146	1281	1281	1373	1483	1582
Capacity		Ton	82	98	126	146	156	167	182	197	216	221	245	280	310	326	364	390	422	435	442
Capacity		KW	81	99	120	140	152	165	178	198	236	225	261	292	318	347	380	425	457	474	449
Refrigerant		R134a
Power Supply		380V150Hz/3Ph
Compressor	Type	Horizontal semlenclosed screw compressor
	Starter	Wye-Delta Closed Transition Starter
	Circuits		1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	4
	Min load		36%	36%	18%	18%	18%	18%	18%	18%	18%	18%	12%	12.00%	12.00%	12.00%	9.00%	9.00%	9.00%	9.00%	9.00%
Evaporator	Type	Shell & Tube (CHIL)
	Rating flow	I/S	13.8	16.4	21.2	24.5	26.1	28	30.5	33.1	36.2	37.1	41.1	46.9	51.9	54.6	61	65.4	70.63	72.8	74.1
	Rating WPD	kPa	36.8	43.3	35.3	47.1	47.4	40.5	47.8	36.6	42.8	38	47.5	49.1	47.8	52.8	51.4	48.7	48	39.9	38
	tube size	mm	DN100	DN100	DN125	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN150	DN200	DN200	DN200	DN150
Condenser	Fan type		Axial flow
	Quantity	per	6	6	10	10	10	10	12	12	12	14	14	14	16	16	18	18	24	20	28
	power	KW/per	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	2.8	1.8	1.5
	Fan speed	RPM	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max970 min200	max970 min200	max970 min200	max970 min200	max970 min200	max970 min200	max970 min200	max910 min200
	Single fan airflow	m²/h	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	20000	20000	20000	20000	20000	23,000	20000	17,051
Max RLA 1	Control panel 1	A	230	269	327	377	413	449	496	536	536	543	445	493	542	542	493	533	570	537	543
	Control panel 2											-	226	270	270	270	493	533	570	537	543
Start-up Current	Control panel 1	A	195	228	285	327	357	387	420	453	546	462	631	670	753	753	631	747	764	747	462
	Control panel 2											-	226	266	266	266	631	741	764	747	462
Refrigerant charge	ckt 1	kg	94	100	89	85	85	85	90	91	98	104	140	140	158	174	148	148	202	183	104/104
Refrigerant charge	ckt 2	kg			71	85	85	85	90	91	98	104	69	69	75	75	148	148	202	183	104/104
Dimension	Length	mm	3,970	3970	6330	6330	6330	6330	7510	7510	7510	8732	9200	9200	10380	10380	11560	11560	14980	11810	17514
	Width	mm	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Height	mm	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480	2480	2480
Shipping weight		kg	3020	3190	4646	4989	5027	5194	5421	5530	5734	6411	7471	7691	8378	8394	9562	9712	11279	10397	12822
Operation weight		kg	3170	3351	4895	5248	5292	5473	5711	5846	5853	6542	7577	7811	8515	8531	9713	9879	11462	10603	1308
Notes: 1. Cooling conditions: inlet and outlet water temperature 12 ℃ C/7 ℃, ambient temperature 35 ℃; fouling coefficient 0.018m. ℃/kW, 85-225ton machine evaporator is 2 processes, 255ton and above machine evaporator is 1 process; 2. Ultra-low noise, wide ring temperature or low ring temperature options, EC motor is used on the air side; 3. Power supply type is selected according to the unit voltage (380V/50Hz/3Ph, 400V/50Hz/3Ph, 415V/50Hz/3Ph three options), and the current value given in the table is based on 380V/50Hz/3Ph; 4. Trane's products are constantly being improved and updated. If there are any changes to the data in the above table, we will not notify you separately. Please forgive us.

Model		RTAG-S	125	145	155	170	190	205
Capacity		KW	440	510	546	586	642	695
Capacity		Ton	125	145	155	167	183	198
Capacity		KW	139	160	173	187	201	222
COP		KW/KW	3.16	3.2	3.16	3.14	3.19	3.13
IPLV		KW/KW	4.2	4.22	4.23	4.22	4.31	4.26
Refrigerant		R134a
Power Supply		380V150Hz/3Ph
Compressor	Type	Horizontal semlenclosed screw compressor
	Starter	Wye-Delta Closed Transition Starter
	Circuits		2	2	2	2	2	2
	Min load		18%	18%	18%	18%	18%	18%
Evaporator	Type	Shell & Tube (CHIL))
	Rating flow	I/S	21	24	26	28	31	33
	Rating WPD	kPa	41	54	47	40	50	44
	tube size	mm	DN125	DN125	DN125	DN150	DN150	DN150
Condenser	Fan type		Axial flow
	Quantity	per	8	8	8	8	10	10
	power	KW/per	1.8	1.8	1.8	1.8	1.8	1.8
	Fan speed	RPM	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200	max910 min200
	Single fan airflow	m²/h	17,982	17,982	17,982	17,982	17,982	17,982
Max RLA 1	Control panel 1	A	319	369	405	441	489	528
Start-up Current	Control panel 1	A	285	327	357	387	420	453
Refrigerant charge	ckt 1	L	6	6	7	8	8	8
Refrigerant charge	ckt 2	L	6	6	6	8	8	8
Dimension	Length	mm	5,150	5150	5150	5150	6330	6330
	Width	mm	2245	2245	2245	2245	2245	2245
	Height	mm	2480	2480	2480	2480	2480	2480
Shipping weight		kg	4202	4510	4554	4721	5079	5178
Operation weight		kg	4426	4744	4801	4982	5351	5465
Notes: 1. Cooling conditions: inlet and outlet water temperature 12 ℃ C/7 ℃, ambient temperature 35 ℃; fouling coefficient 0.018m. ℃/kW, 85-225ton machine evaporator is 2 processes, 255ton and above machine evaporator is 1 process; 2. Ultra-low noise, wide ring temperature or low ring temperature options, EC motor is used on the air side; 3. Power supply type is selected according to the unit voltage (380V/50Hz/3Ph, 400V/50Hz/3Ph, 415V/50Hz/3Ph three options), and the current value given in the table is based on 380V/50Hz/3Ph; 4. Trane's products are constantly being improved and updated. If there are any changes to the data in the above table, we will not notify you separately. Please forgive us.

As a trusted chiller supplier in China,we offer the RTHG water-cooled Trane Screw Chillers as a solution for large-scale refrigeration needs.With their energy-efficient performance,flexible configurations,and eco-friendly design,these chillers provide reliable,cost-effective solutions for new projects or the upgrade of existing equipment.Contact our professional team for tailored refrigeration solutions that meet your specific requirements.
