Trane 380RT Water‑Cooled Centrifugal Chiller RTHB380 (Used) in stock
video
Trane 380RT Water‑Cooled Centrifugal Chiller RTHB380 (Used) in stock

Trane 380RT Water‑Cooled Centrifugal Chiller RTHB380 (Used) in stock

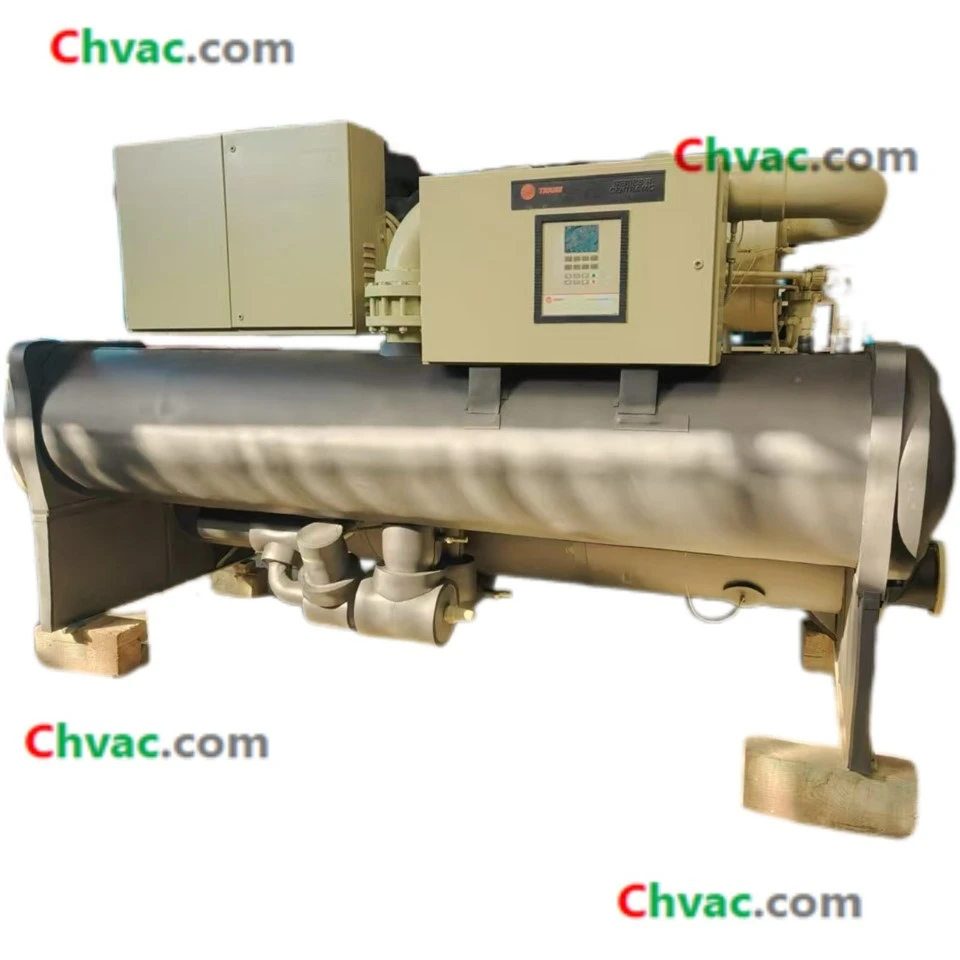

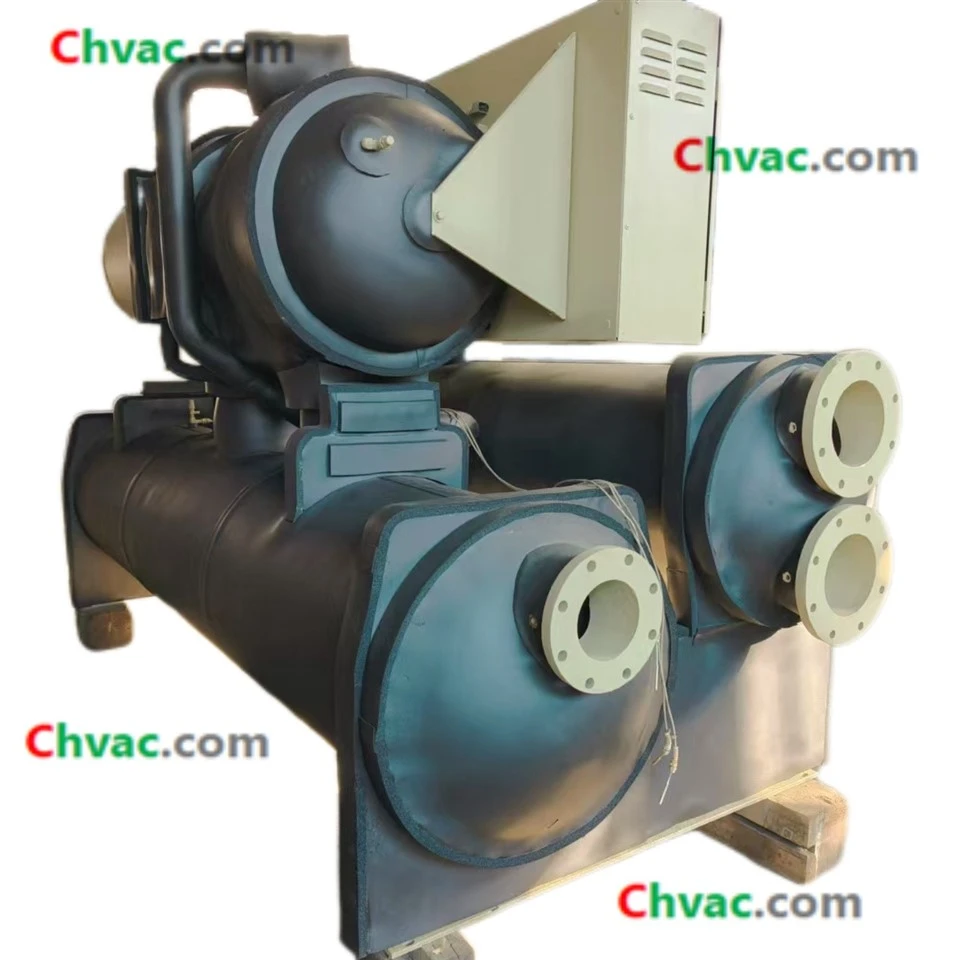

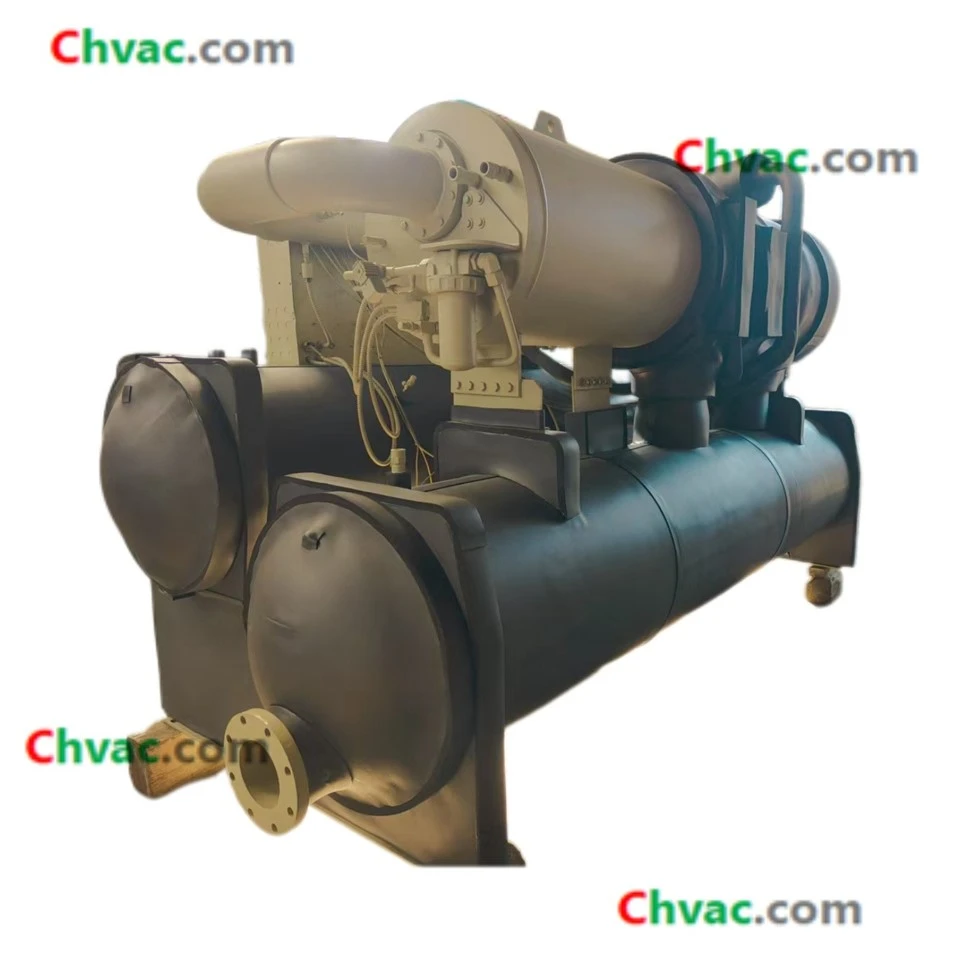

Trane Water‑Cooled Helical Rotary Screw Chiller, Model RTHB380DMF00LWPOMOUNN3LF2LF0000C, S/N U98M04478, 380RT, R22, 380V‑3PH‑60Hz, Used complete unit, Made in U.S.A Net:12200 KGS, Gross:13200 KGS

Description

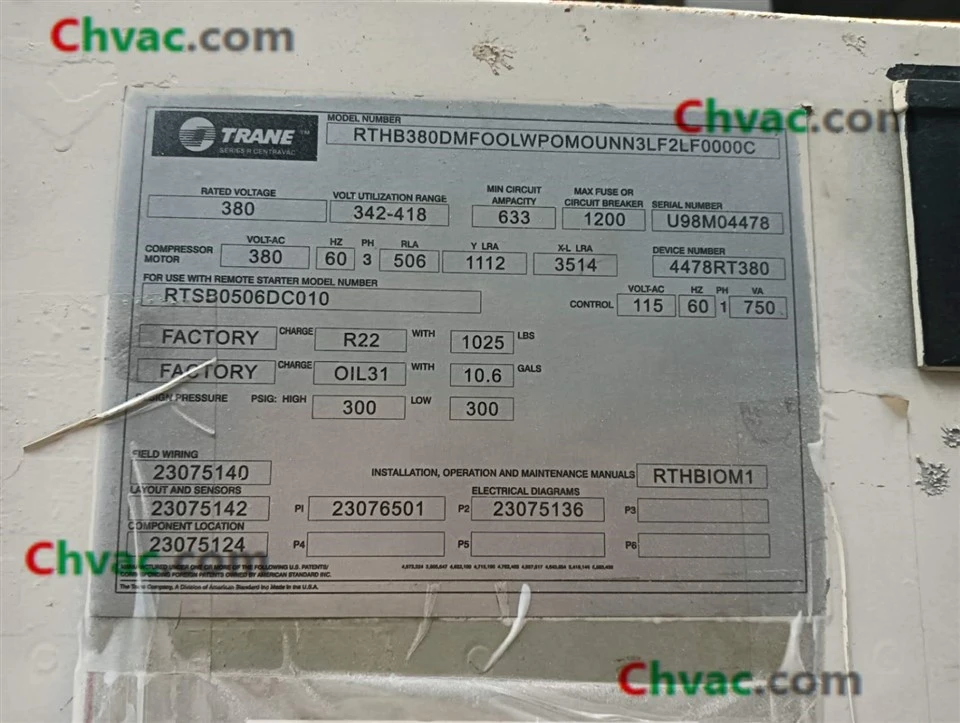

Item Specification
Full Model RTHB380DMF000LWPOM0NN3LF2LF00000C
Series Series-R Centravac water-cooled screw chiller
Serial No. U98M0478
Equipment No. 4478 RT380
Refrigeration Capacity 1336 kW(380 RT)
Rated Voltage 380V, 3-phase, 60Hz
Voltage Range 342–418V
Compressor Motor 380V 50Hz 3PH; RLA 506A; Y-LRA 1112A; X-LRA 3514A
Minimum Loop Current 633 A
Maximum Fuses / Circuit Breakers 1200 A
Control Power Supply 115V, 60Hz, 1-phase, 750VA
Refrigerant R22, Factory Charge: 1025 LBS (464.9 kg)
Refrigeration Oil OIL31, Charge: 10.6 GALS (40.1 L)
Design Pressure High side 300 PSI, Low side 300 PSI
Remote Starter Model RTSB0505DC010
Manual Number RTHBIOM 1
Country of Origin Made in U.S.A.
Reference Weight Net weight: 12200 kgs; Export wooden box gross weight: 13200 kgs
