Trane CVHG565 Water-Cooled Centrifugal Chiller
Trane CVHG565 water-cooled centrifugal chiller, made in Taicang China in 2018, Grade 1 energy efficiency. Cooling capacity: 2549kW (725 RT), refrigerant R123. Stable & energy-efficient under variable load, ideal for large commercial buildings, hospitals and industrial park central air conditioning systems. The unit is well sealed and kept in good condition.
Description
Core Technical Specifications
Rated cooling capacity: 2549kW (725 RT)
Full-load COP: 6.12
Integrated part-load efficiency IPLV: 6.56

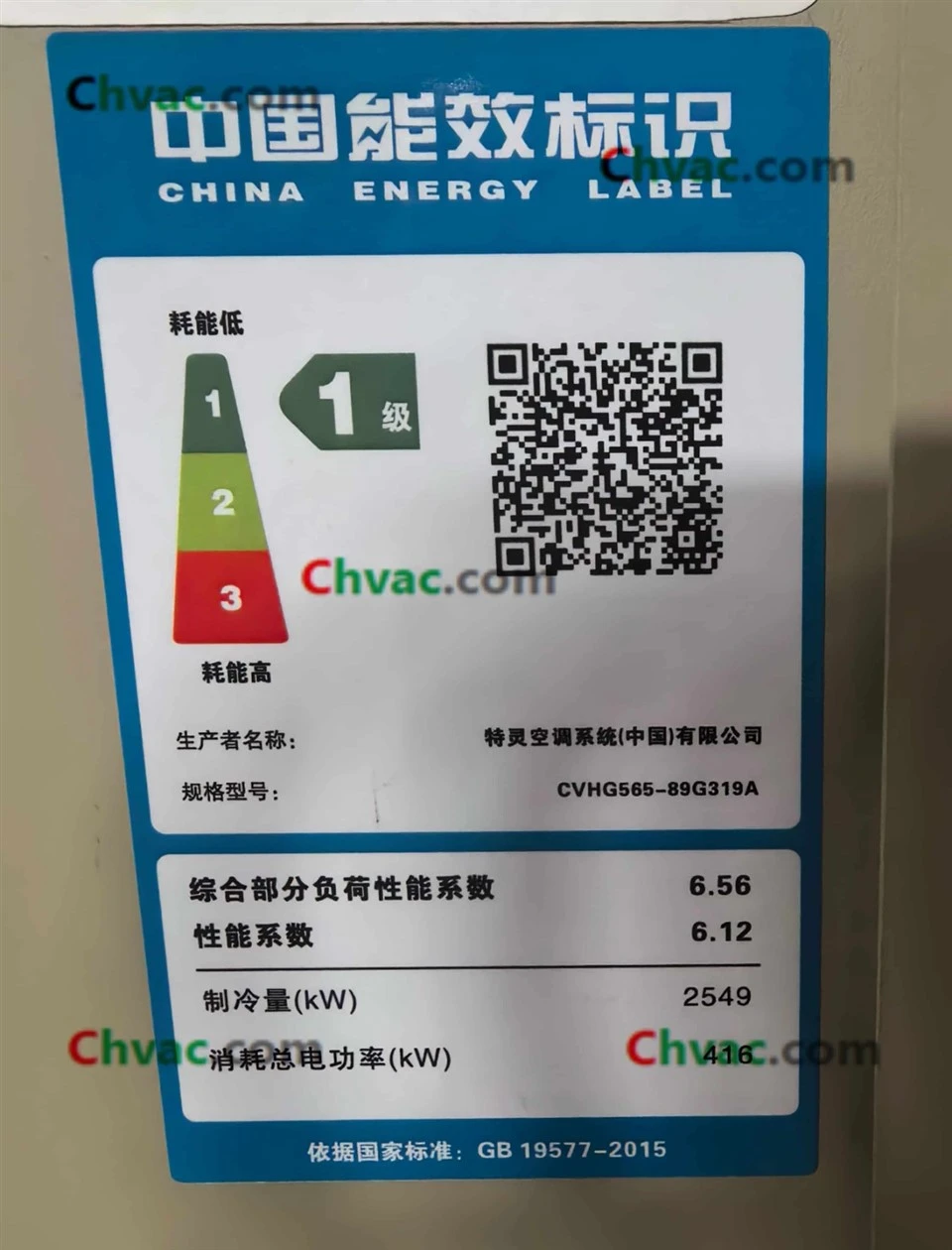

Energy efficiency level: National Grade 1 energy efficiency
Refrigerant: R123
Refrigerant charge: 408.6kg
Power supply: 380V / 3-phase / 50Hz
Rated operating current: 808A
Unit total weight: 10208kg
Product Features & Advantages
Adopting professional three-stage centrifugal compression technology, the unit realizes smooth operation, low vibration and extremely low failure rate. With excellent full-load and part-load energy efficiency performance, it effectively reduces long-term operating power consumption and saves operational costs for building HVAC systems. The original complete configuration includes full electrical control system, heat exchange system, piping and safety protection components without any modification or dismantling.
Equipment Condition
The chiller is well-preserved, completely intact with no damage, no overhaul and no aging failures. All parts remain original, ensuring stable and reliable performance after reinstallation and commissioning. It can be quickly put into normal cooling operation to meet large-scale continuous refrigeration demands.
Application Scope
Suitable for central cooling systems of large shopping malls, commercial complexes, hospitals, industrial parks, office buildings and data centers, supporting long-term stable and high-efficiency centralized cooling for large-area buildings.
