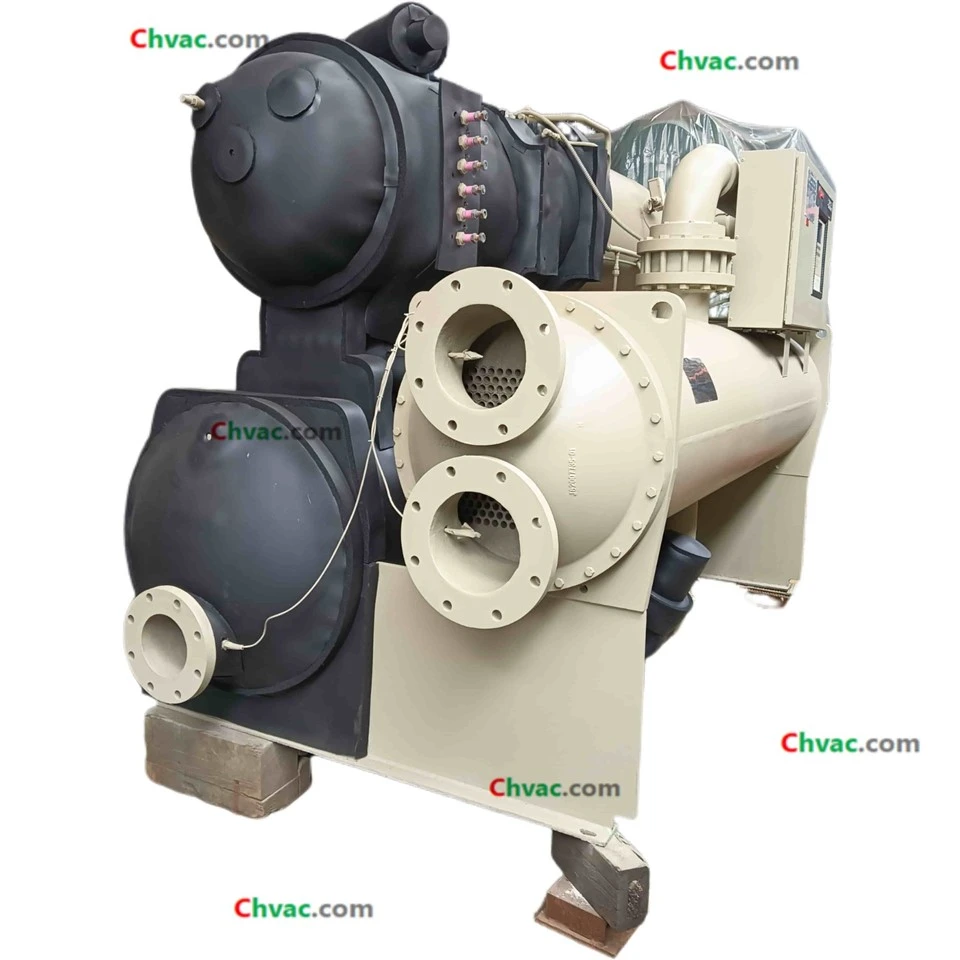

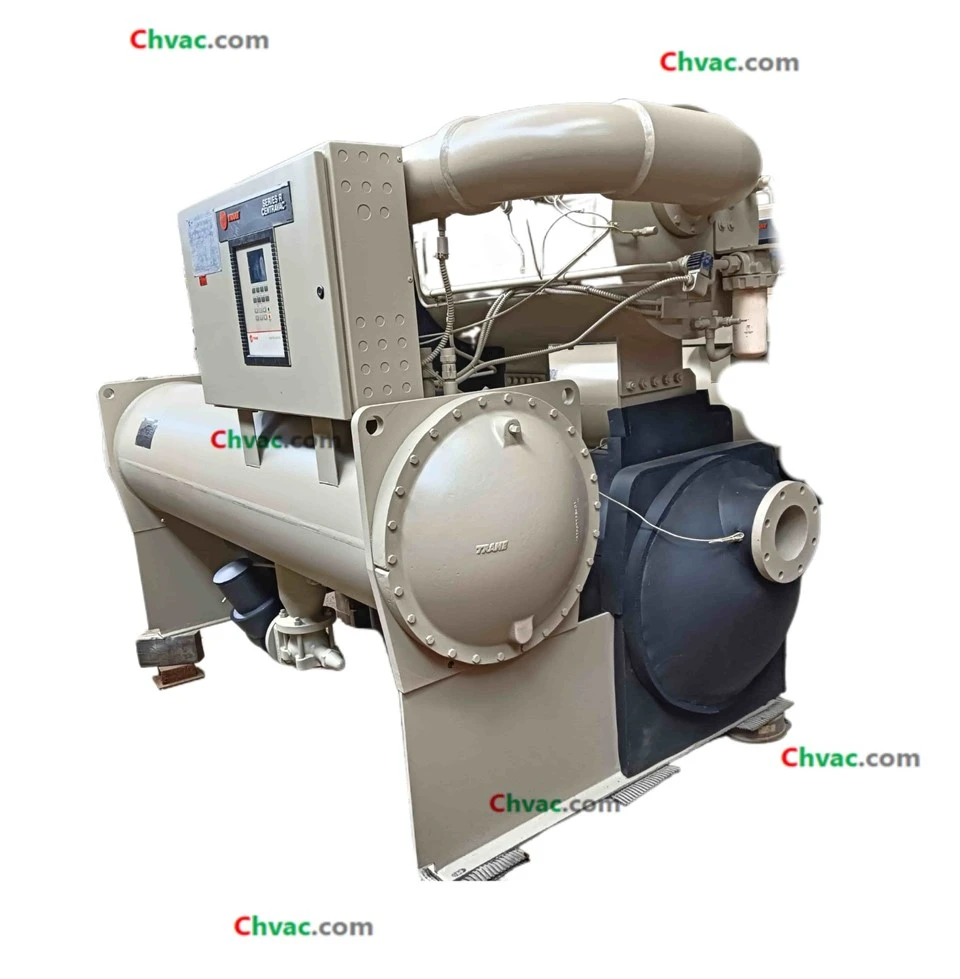

Used Trane RTHB450 Water‑Cooled Screw Chiller
TRANE water‑cooled screw chiller, Model:RTHB450RUFO00NW00000UNN3LP2LF0000A, Device No.B45003068; 380V‑3Ph‑50Hz, Refrigerant R22, factory charge 327kg, Oil31 charge 40.1L; refurbished skid‑mounted unit for large central air‑conditioning cooling.
Description
Key Technical Parameters

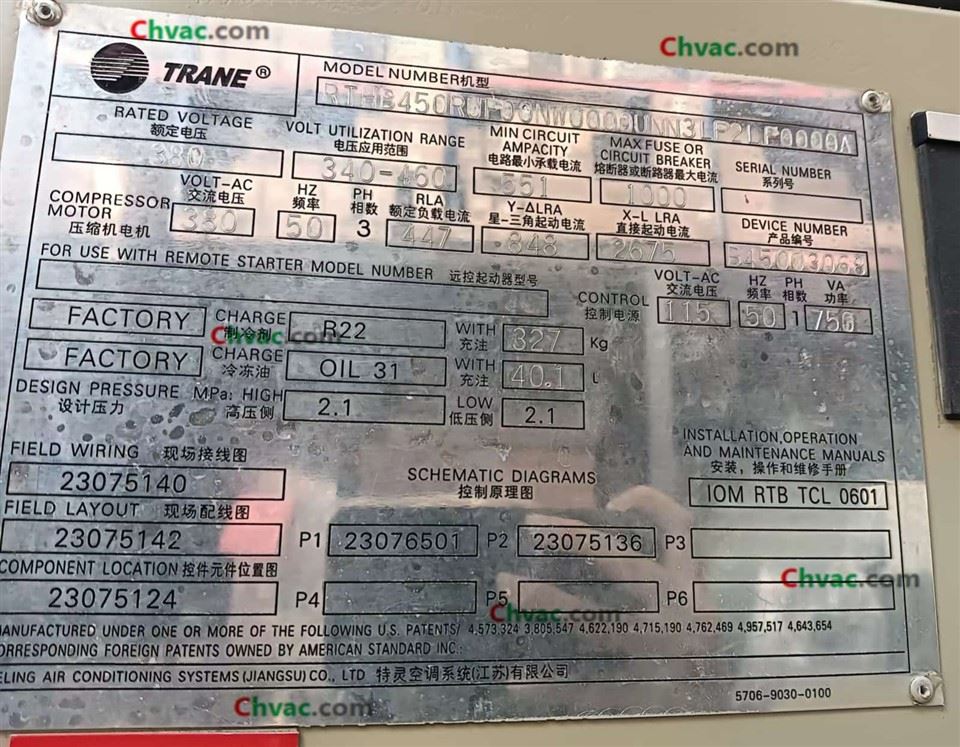

Model: RTHB450RUFO00NW00000UNN3LP2LF0000A
Device No.: B45003068
Rated Voltage: 380V, 3‑Phase, 50Hz, voltage utilization range:340‑460V
Compressor Motor RLA:447A; Y‑ALRA:848A; X‑LRA:2675A
Control Power:115V, 1‑Phase,50Hz,750VA
Refrigerant: R22, factory charge:327 kg
Oil Charge: OIL31, 40.1 L
Design Pressure: High side 2.1 MPa, Low side 2.1 MPa
Min Circuit Ampacity:551A; Max Fuse / Circuit Breaker:1000A
Manufacturer: Trane Air‑Conditioning Systems (Jiangsu) Co., Ltd.
Condition: Refurbished complete skid‑mounted unit
Product Description
This is TRANE RTHB series water‑cooled screw chiller, manufactured by Trane Jiangsu Taicang factory. The unit adopts semi‑hermetic screw compressor, integrated with shell‑and‑tube evaporator, shell‑and‑tube condenser, oil separation system and complete electric control protection system.
Large‑flange water connections are equipped for chilled water and cooling water pipeline connection. The screw compressor supports stepless capacity modulation to match variable cooling load. Built‑in multi‑protections include high‑low pressure protection, motor overload protection, water‑flow protection and oil‑temperature protection.
Suitable for large‑scale central air‑conditioning chilled‑water systems for commercial buildings, industrial plants, hotels and hospitals. Ready for commissioning after water and power connection.
