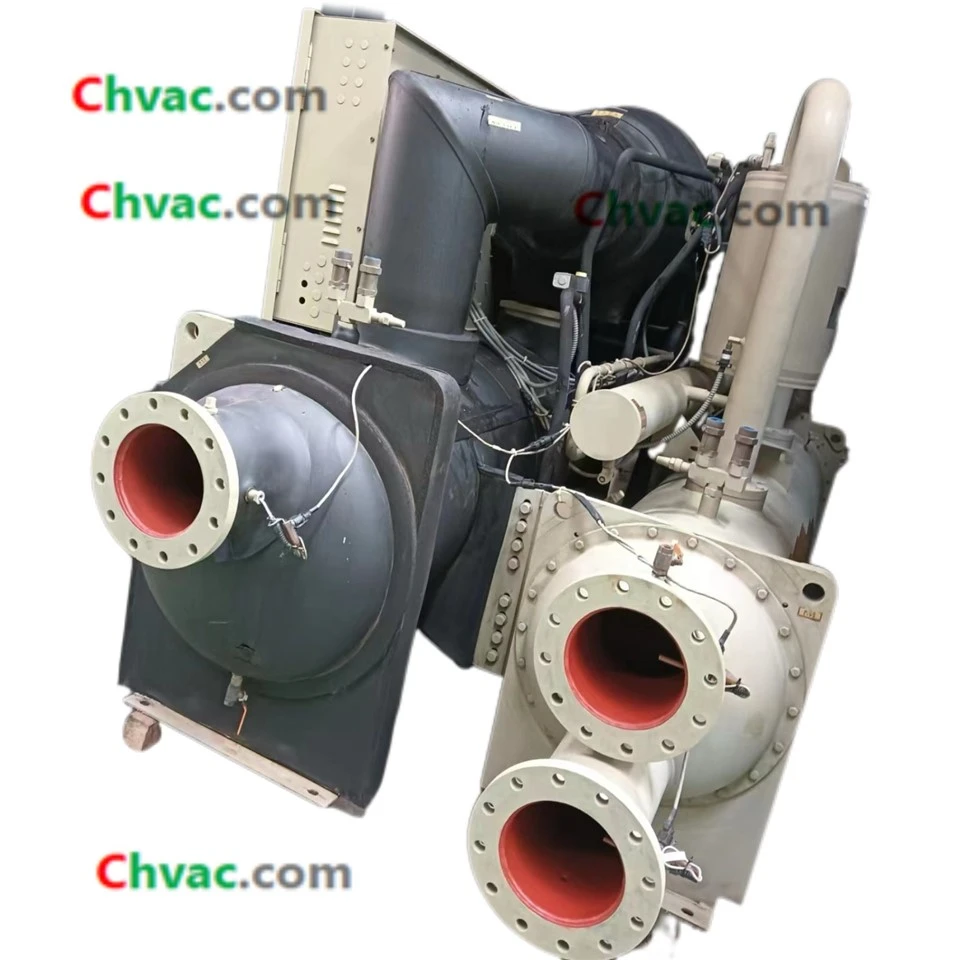

Trane RTHG250 Water-Cooled Screw Chiller
TRANE water‑cooled screw chiller, Model: RTHG250BCXAAXXXX, Serial No.: 325150049. Nominal cooling capacity: 885.3 kW (252 RT). Nominal unit input power: 166.3 kW. COP: 5.32. Refrigerant: R22. Refurbished complete skid‑mounted unit. Applied for large‑scale central air‑conditioning chilled‑water cooling. Complies with ASHRAE 90.1‑2004 and GB/T 18430.1‑2007 standards.
Description
Product Introduction
Brand: TRANE
EquipmentType: Water‑Cooled Screw Chiller
Model: RTHG250BCXAAXXXX
Serial Number: 325150049
Key Technical Parameters ‑
Nominal cooling capacity: 885.3 kW (252 RT, 760 000 kcal/h)
Nominal unit input power: 166.3 kW
COP: 5.32
Refrigerant: R22
Condition: Fully refurbished, integrated skid‑mounted unit
Product Description
This is TRANE RTHG series water‑cooled screw chiller manufactured at Taicang plant. The unit integrates semi‑hermetic screw compressor, oil separation system, shell‑and‑tube evaporator, shell‑and‑tube condenser and complete electric control & protection system. Equipped with large‑flange water connections, the unit can be put into operation after connecting cooling water and chilled‑water pipelines. The screw compressor features stepless capacity regulation with excellent part‑load efficiency. Full safety protections including high/low pressure, oil temperature, water flow and motor overload are built‑in. Suitable for chilled‑water systems of commercial complexes, industrial plants, hotels and hospitals. Complies with ASHRAE 90.1‑2004 and GB/T 18430.1‑2007 standards.
