YORK 430RT Screw Water‑Source Heat Pump YSQZEZS45CKE/22
YORK YSQZEZS45CKE/22 liquid chilling system, 1515kW nominal cooling capacity, R22 refrigerant.
Manufactured by YORK(Wuxi) in March 2014, net weight 9900kg.
This used screw chiller is suitable for large‑scale industrial and commercial central air‑conditioning projects.
Description

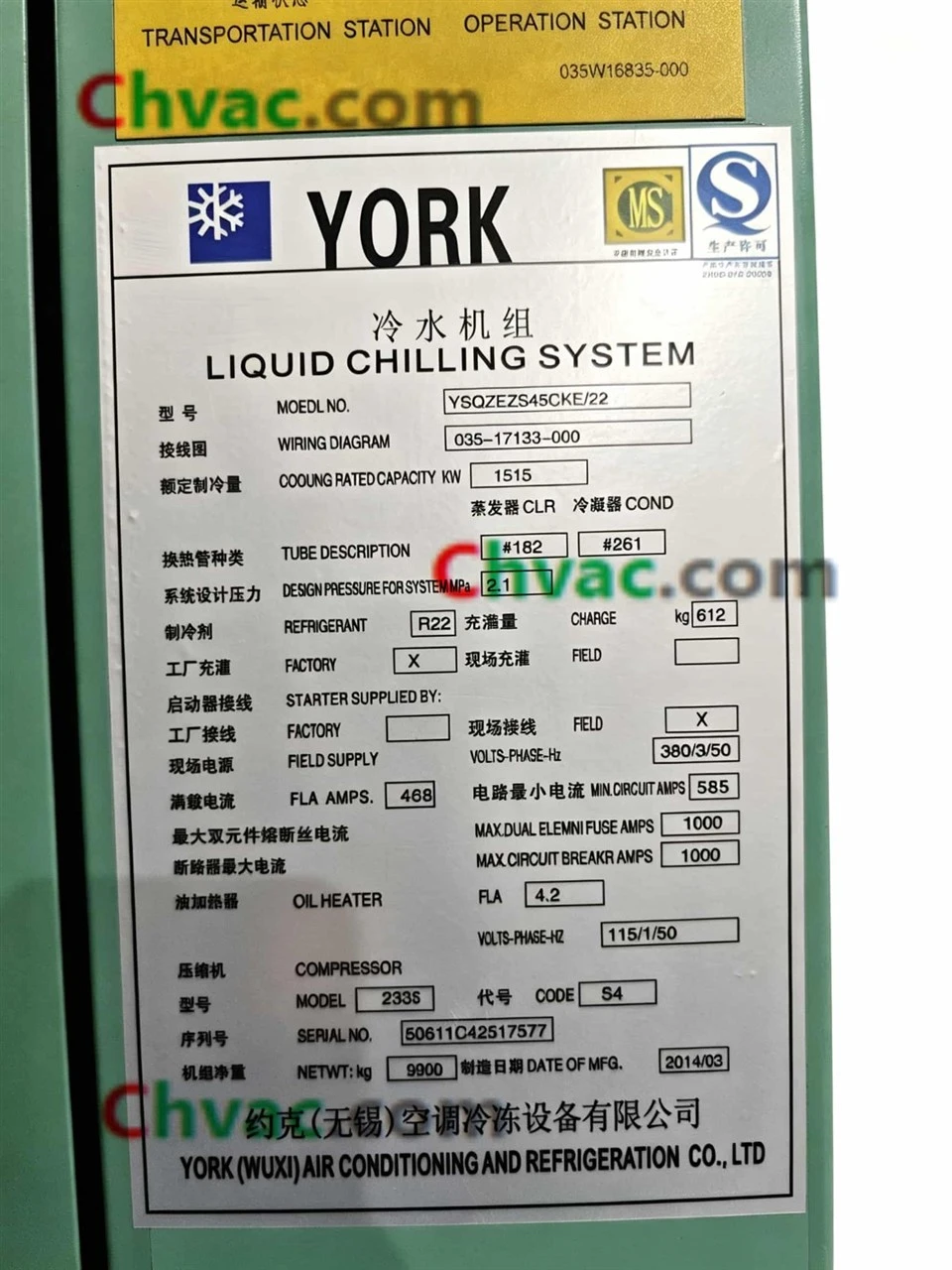

Model：YSQZEZS45CKE/22
Nominal Cooling Capacity：1515 kW
Refrigerant：R22
Refrigerant Charge：612 kg
System Design Pressure：2.1 MPa
Compressor Model：233S
Compressor Code：S4
Power Supply：380V, 3‑Phase, 50Hz
Full‑load Amps (FLA)：468 A
Minimum Circuit Amps：585 A
Max Dual‑element Fuse Amps：1000 A
Max Circuit Breaker Amps：1000 A
Oil Heater：115V, 1‑Phase, 50Hz
Oil Heater FLA：4.2 A
Unit Net Weight：9900 kg
Serial No.：50611C42517577
Date of Manufacture：Mar 2014
