York YKEDC4Q75EOH/XC22BVRP Centrifugal Water‑Cooled Chiller 1934kW

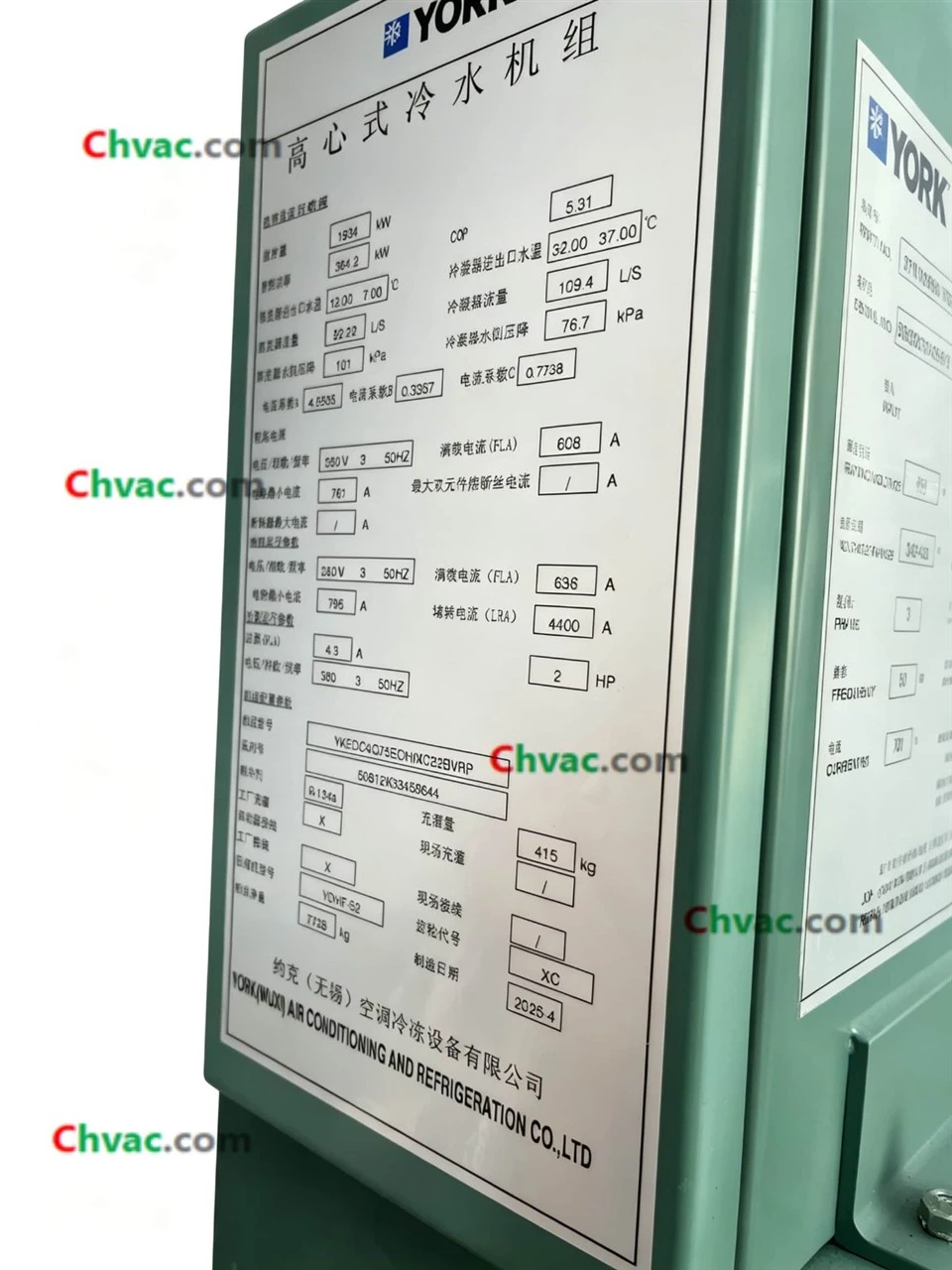

This unit adopts YDHF‑52 centrifugal compressor, model number YKEDC4Q75EOH/XC22BVRP. It reaches rated cooling capacity up to 1934 kW, while the corresponding rated power consumption stands at 364.2 kW. Under full‑load working condition, its COP is 5.31, and integrated part‑load performance value hits 8.38, complying with Grade 2 national energy‑efficiency standard.

R‑134a serves as working refrigerant, with factory pre‑charge of 415 kg. Designed for 380V, 3‑phase, 50Hz power supply. Full‑load running current is 608 A and locked‑rotor current reaches 4400 A. The oil pump runs on 380V 3‑phase 50Hz and power rating is 2 HP.

For evaporator circuit: water enters at 12.00℃ and flows out at 7.00℃. Circulation flow comes to 92.22 L/S, alongside water‑side pressure loss of 101 kPa. For condenser side: inlet water temperature is 32.00℃ and outlet temperature is 37.00℃. Water circulation rate is 109.4 L/S with pressure loss 76.7 kPa.

Total net weight of complete chiller is 7728 kg. This equipment was manufactured in April 2025 by YORK (Wuxi) Air‑Conditioning & Refrigeration Equipment Co., Ltd.
