Carrier 30XW‑V500 Variable‑speed Water‑cooled Screw Chiller
Model:30XW‑V500, Variable‑speed water‑cooled screw chiller, Cooling capacity:1763kW, Refrigerant:R134a, 380V‑50Hz‑3Ph, IPVL:8.50, Grade‑1 energy efficiency
Description
| Item | Specification |
|---|---|
| Model | 30XW‑V500 |
| Type | Variable‑speed water‑cooled screw chiller |
| Nominal Cooling Capacity | 1763 kW |
| Refrigerant | R‑134a (zero ozone depletion potential)Carrier |
| Power Supply | 380‑400V / 3Ph / 50Hz |
| Nominal Input Power | 318.7 kW |
| Full‑load EER | 5.53 kW/kW |

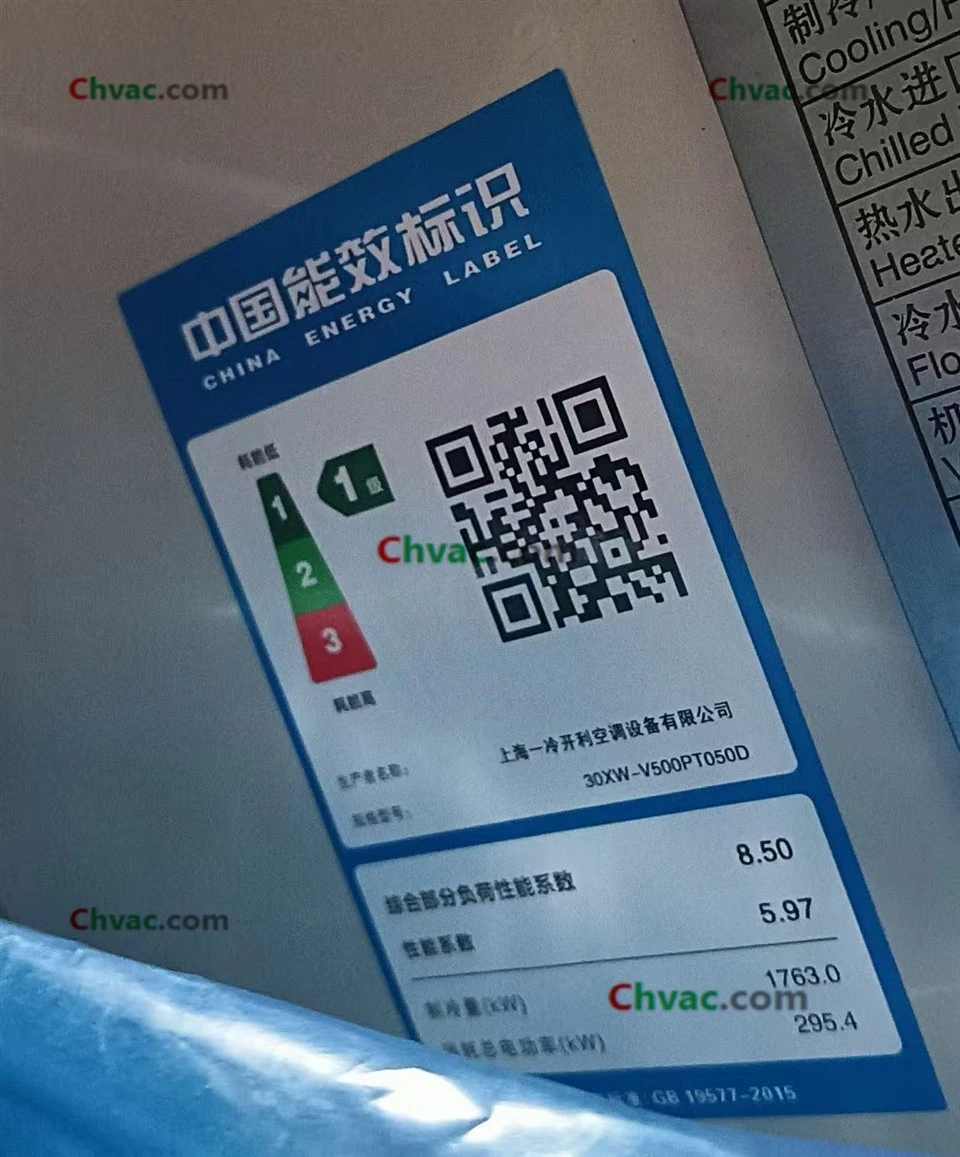

| IPLV | 8.50 |
| Evaporator Water Temp Range | 3.3℃‑20℃ leaving water temperatureCarrier |
| Condenser Max Leaving Water Temp | 42℃ |
| Design Working Pressure | 1.0 MPa (Standard); Optional 1.6 MPa / 2.0 MPaCarrier |
| Evaporator Fouling Factor | 0.018 m²·K/kWCarrier |
| Condenser Fouling Factor | 0.044 m²·K/kWCarrier |
| Control System | Carrier integrated microprocessor controller, real‑time monitoring & fault diagnosis |
| Application Scenarios | Office building, hotel, shopping mall, hospital, industrial process cooling, building renovation project |
