Carrier 30HXC250AH Water Cooled Chiller
The Carrier 30HXC series water-cooled screw chillers are high-efficiency refrigeration units designed to meet the demands of large commercial and industrial applications. Featuring advanced screw compression technology, these chillers deliver outstanding performance, energy efficiency, and reliability—making them an ideal choice for modern refrigeration systems
Description

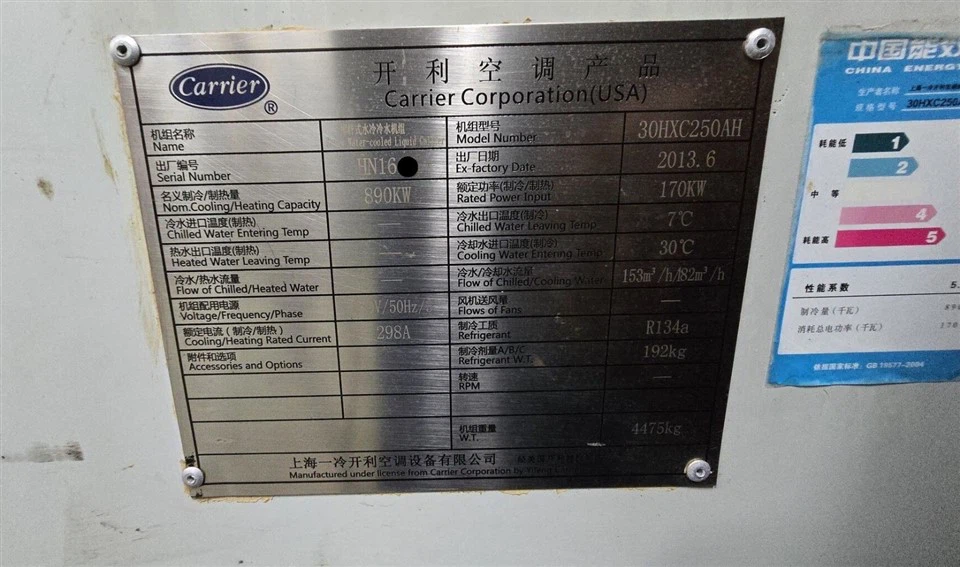

BASIC INFORMATION
| Model | 30HXC250AH |
|
| Cooling Capacity | 890KW | |
| Power | 170KW | |
| COP | 5.2 | |
| Chilled Water leaving | 7°C | |
| Cooling water entering | 30°C | |
|
Production Date Weight |
SEP 2018 4475 |
A Carrier water-cooled chiller is a centralized cooling system that uses a vapor-compression or absorption refrigeration cycle to remove heat from a liquid (typically water or a water-glycol mixture). This chilled liquid is then pumped through a building to air handlers or fan coils to provide air conditioning. The defining feature of a "water-cooled" system is that it uses water to reject the heat it collects from the building, as opposed to air.
Carrier is one of the world's leading manufacturers of HVAC systems, known for its innovation, reliability, and high efficiency, particularly in its chiller lineup.
Higher Efficiency: Water is a much better heat transfer medium than air. This allows the condenser to operate at a lower temperature, which reduces the work the compressor has to do. This results in a significantly lower kW/ton (the primary measure of chiller efficiency).
Longer Lifespan: Because the condenser is not exposed to the outdoor air (like an air-cooled chiller is), it is protected from the elements and corrosion. Water-cooled chillers often last 20+ years, sometimes over 30 with proper maintenance.
Quieter Operation: The noisy components (the compressor and condenser fans) are located inside a mechanical room. The cooling tower, located outside, is generally quieter than the large fans on an air-cooled chiller.
Stable Performance: Less affected by extreme outdoor ambient temperatures than air-cooled systems, making them more consistent and reliable in hot climates.
Smaller Footprint: The chiller unit itself is more compact than an equivalent air-cooled chiller, as it doesn't need a large air-cooled condenser coil and fans.
Hot Tags: carrier 30hxc250ah water cooled chiller, China carrier 30hxc250ah water cooled chiller suppliers, factory, 375 TR Carrier 30XW V375 Water Cooled Chiller, 430 TR Carrier 30XW1502 Water Cooled Chiller, 614kw Carrier 30XW0612 Water Cooled Chiller CHVAC, Carrier 30HXC250AH Water Cooled Chiller, Carrier 30XW Chiller, carrier chillers
